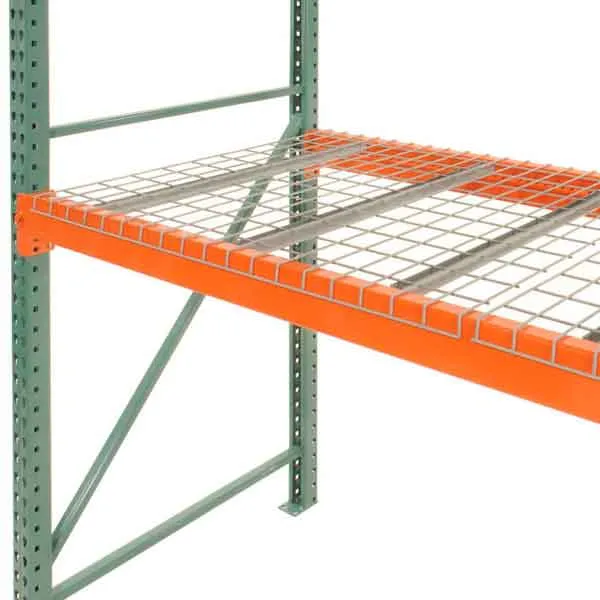

Our welded wire mesh decking can be easily used on most of the racking systems, included boxed beam, step beam or square section beam, grid sizes including 50X50, 50X100, and 25X100, wire diameter 4mm, 5mm, 6mm.

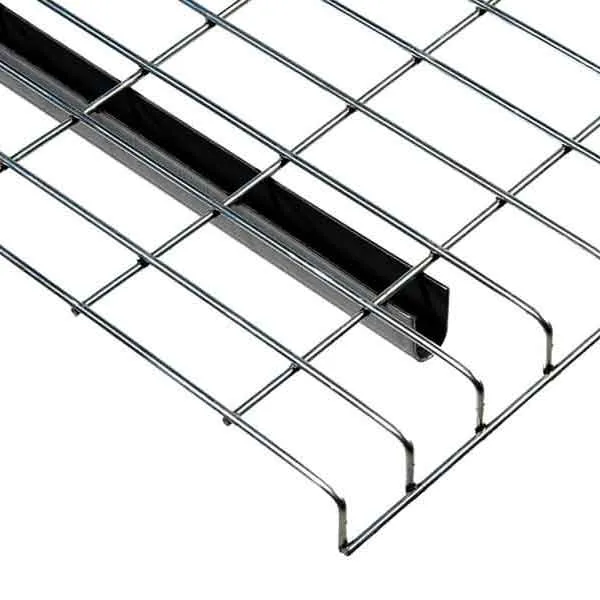

it can be easily fitted into existing racking systems, we supply universal waterfall type which sits directly on the beams, also in-lay type/inside waterfall which flushes with the top of the beams, and upward lip type as well.
It comes with customerized width and lenght which accommodate a capacity of 100-2000kg
Surface finish can be either zinc plated (economical ) or powder coated.

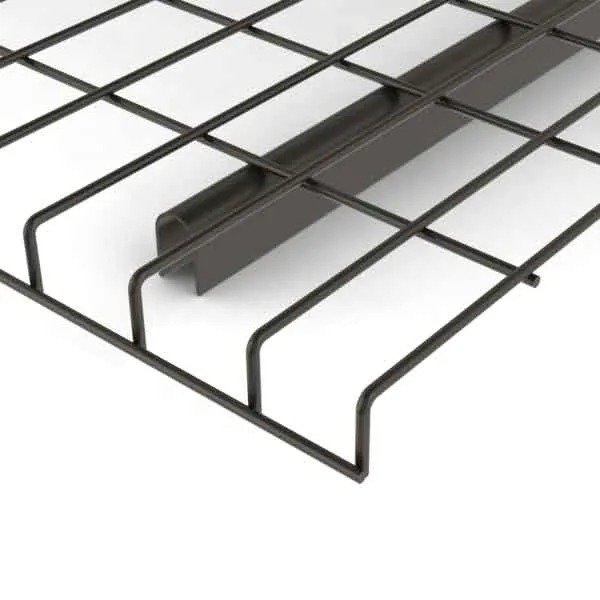

Flared wire decking is designed mainly for box beam rack.

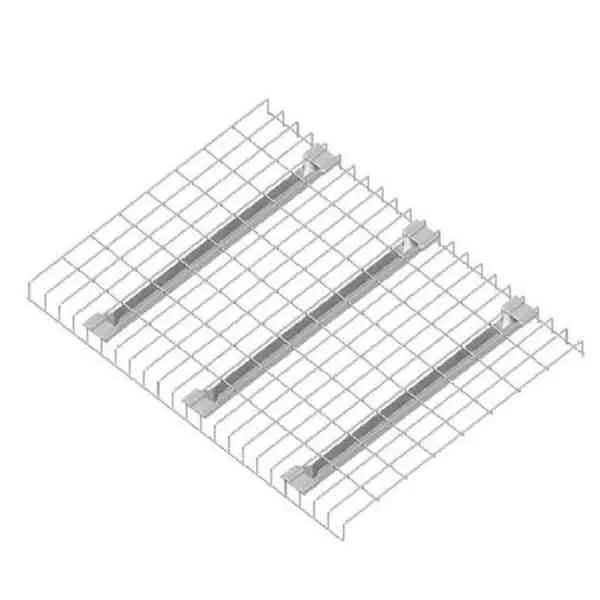

U channels with flared ends are welded to wire mesh to reinforce the loading capacity.
Wire diameter: 5.0-6.4mm;
Mesh size commonly used: 100*50, 50*50mm
Flared channels thickness: 1.8mm, 2.0mm
Suitable for small items storage
Easy to identify items and prevents dirt from accumulation on shelf.
Meet the needs of warehousing and centralized management of large quantities of goods and a variety of products
Enchance safety to pallet racking system.
The raw materials of wire mesh decking are made of high-quality cold-drawn wire and spray-welded to form a wire mesh decking of 50*50. The bottom is reinforced with reinforcing ribs, and the two sides are bent and placed on the shelf beam to ensure the safety of the goods. The general loading capacity can reach 3T, and the surface treatment is galvanized and sprayed.
| Specifications of Wire Mesh Decking | |
| Wire mesh steel decking or racking | |
| Style | Reinforced, heavy duty |
| Material | Grade Q235 (or SS400) Q345 |
| Certification | ISO9001 |
| Standard Color | Zinc-plated |
| Adjustable Pitch | N/A |
| Access Style | High Accessibility & Selectivity |
| Finishing | Powder Coated or Galvanized |
| Application Environment | Normal Temperature or Freezer |
Generally, it is made according to the size of heavy duty pallet racking. According to different loading capacity requirements
As a reliable warehouse storage equipments manufacturers, we will provide your prospective customers with more complete services with a relatively standard product structure and the support of quite professional business personnel. Under this word of mouth and the push of the Internet, the company will expand to a farther market. While forming a brand and expanding its influence, it also lays a solid foundation for the company's subsequent upgrades.
it can be summarized as follows: Wire diameter: 5.0, 6.0, 6.4 and 8.0; Mesh: 50*50, 50*100, 25*25, 50*25;
Reinforcing rib: generally U-shaped steel with an opening length of 70mm, flattened at both ends.
