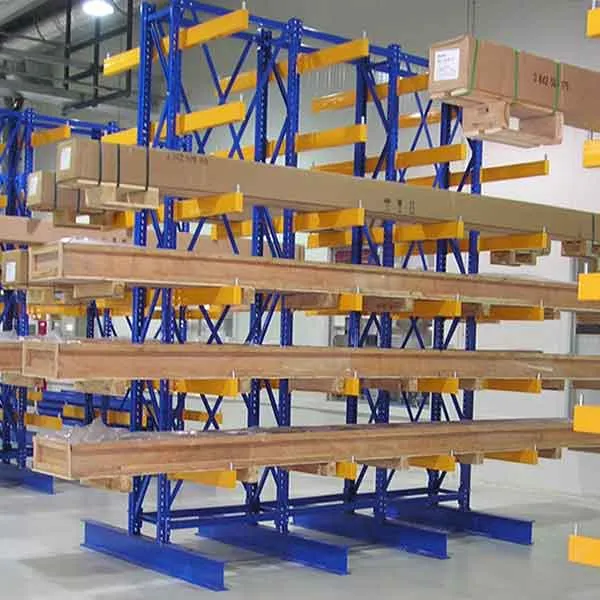

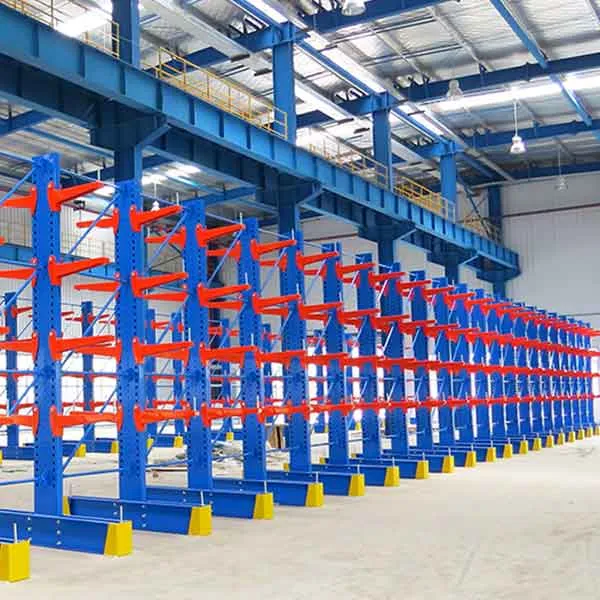

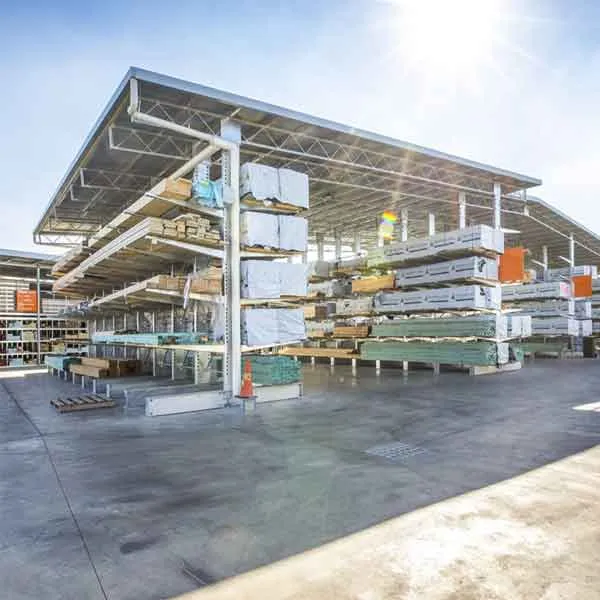

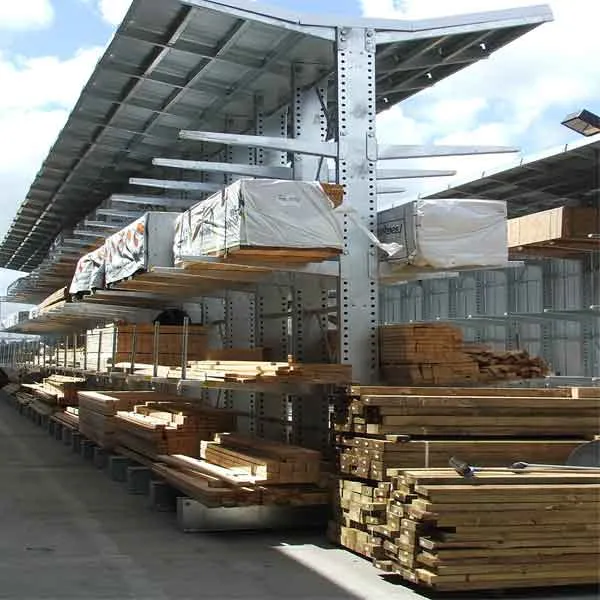

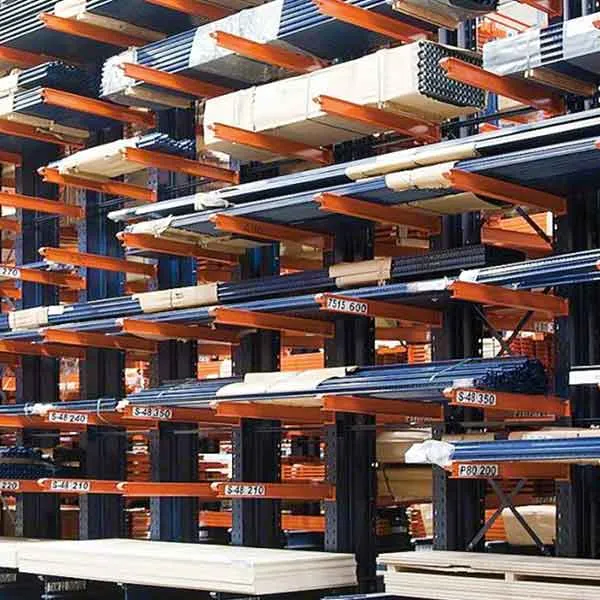

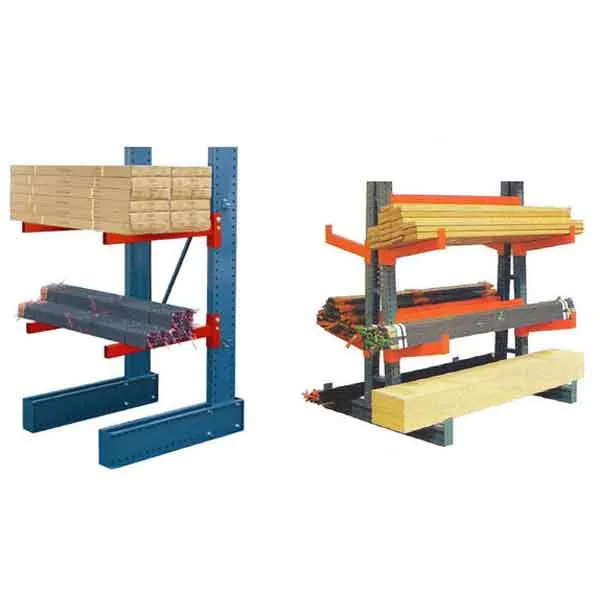

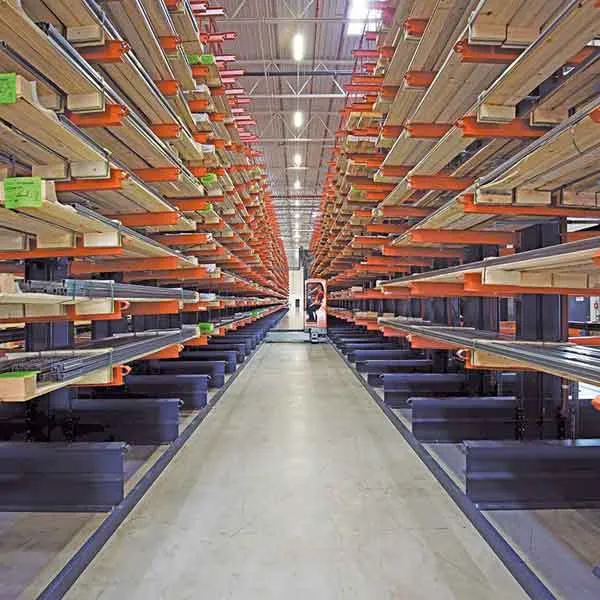

Cantilever Storage Racks are made by installing external cantilevers on traditional rack pillars, and are racks for long objects. For storing non-standard or long rod materials, it can greatly improve the utilization rate and work efficiency of the warehouse. The cantilever can be single-sided or double-sided arm. It is suitable for storing long materials, annular materials, plates, pipes and irregular goods.
Industrial Cantilever Racks are mostly used in machinery manufacturing industry and building materials supermarkets. After adding shelves, it is especially suitable for warehouses with small space and low height. It is easy to manage, has a wide field of vision, and has a higher utilization rate than ordinary shelves.
Features of Cantilever Storage Racks
Suitable for storing various long materials, ring materials, plates and irregular materials, etc.
Its forward cantilever can be single-sided or double-sided, it has the characteristics of light structure and good load capacity, and the single arm can bear up to 1000kg.
The space between the partitions can be adjusted and the partitions can be increased or decreased according to actual needs
The back pull is designed to increase the overall stability of the shelf, easy installation and complete accessories. Combined structure, special profile column, design back pull to increase stability
Very narrow aisle pallet racking, also known as VNA pallet racking system, are derived from selective pallet racking, known as a dense storage system. They are mainly composed of column pieces, crossbeams, span beams, back stops, ground rails, feet, and other accessories.
Each layer can be adjusted to a certain pitch. It has high space utilization and large storage capacity. Widely used in logistics and warehousing centers, large warehouse style supermarkets.
Compared with standard pallet racking systems, the difference between VNA racking in the significant reduction in the size of the pickup channel, which is generally 1.6m-2.0m. The space utilization rate can be increased by 30% to 60%, allowing your warehouse to achieve narrow while large.
In order to facilitate the storage and retrieval of goods, narrow aisle shelves need to be operated in conjunction with stacking forklifts. The ground feet should be equipped with guide rails, which are usually made of angle steel. The stacking forklifts move along the established tracks, effectively preventing forklifts from hitting the shelf columns and ensuring the safety of the work.
The size of the pickup channel in the VNA racking is slightly larger than the width of the pallet. The cargos are placed and carried like standard pallet racking, making it easy to pick up cargos.
The Advantages and Disadvantages of VNA Racking System
The pickup channel is relatively narrow, generally between 1.6m-2.0m
The warehouse space ratio has significantly increased, by about 30% to 60% compared to the ordinary crossbeam type
Easy to reach cargos
Usually, VNA racking have independent forklifts operating inside the warehouse, suitable for the warehouse storage that need with large storage capacity, frequent inbound and outbound operations, and high requirements for picking cargos.

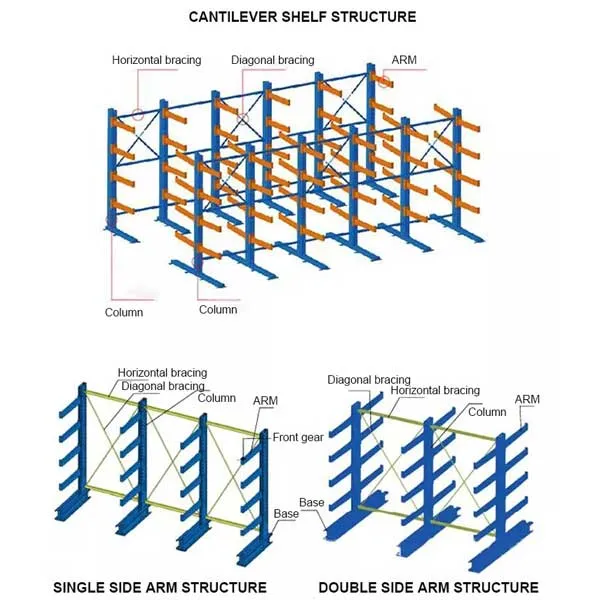

Cantilever racks are composed of uprights, cantilevers, connecting rods, crossbars and other materials, and are mainly used to store long-shaped goods, such as plates, pipes, cables, etc. They can also be placed with shelves for storing goods.
As a reliable warehouse storage racks manufacturers, we will provide your prospective customers with more complete services with a relatively standard product structure and the support of quite professional business personnel. Under this word of mouth and the push of the Internet, the company will expand to a farther market. While forming a brand and expanding its influence, it also lays a solid foundation for the company's subsequent upgrades.
The load-bearing capacity of Cantilever Storage Rack System is generally at least 1.6t or more. This type of shelf can hold steel, steel pipes, and even cars.
The cantilever and the column are connected by plug or bolt, the base and the column are connected by bolts, the column and the column are connected by a connecting rod, and the connecting rod is a rectangular tube. To increase safety and stability, you can add a flat iron back pull to the connecting rod to fix the column.
