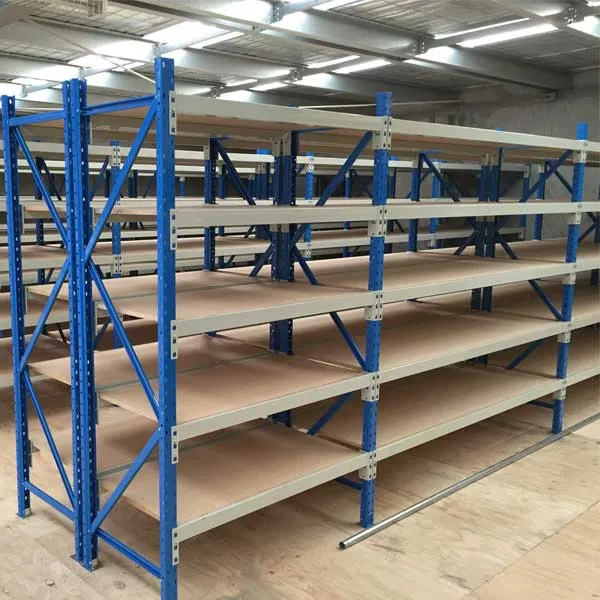

Longspan Racking is composed of uprights, beams, transverse braces, diagonal braces and laminates. Nylon self-locking bolts can effectively prevent the shelf from becoming unstable after the bolts are loosened.
The uprights are punched with double rows of diamond-shaped holes. The height of the panel corner guard can be adjusted by 50mm, which increases the flexibility of storage. The laminates can be composed of steel laminates, wood laminates and steel meshes. The laminates are laid between the beams. The clapboard racks have great bearing capacity and fully save space. They are suitable for small batches, multiple varieties, small items storage and Manual storage.
The layer height can be adjusted freely to increase the storage capacity.
The loading capacity of each layer can be customized. The weight of each layer is between 100kg-800kg
Lock-in step beam, steel or wooden panels.
Longspan racking manufacturer make accroding to clients’ requirements.
Structure: Also known as Medium duty long span shelves, it consists of uprights, beams and layers of steel plates. The laminates are mainly steel laminates.
Shelf column: It is roll-formed from cold-rolled steel plate by a special cold-formed forming unit. The front of the column is punched with double rows of holes. The distance between the holes is arranged in a straight line at a distance of 50mm. The column holes are used for hanging beams. The two uprights are opposite to each other, and there are horizontal connecting pipes and inclined connecting pipes in the middle to assemble the two uprights into the upright pieces of the standard medium-sized rack.

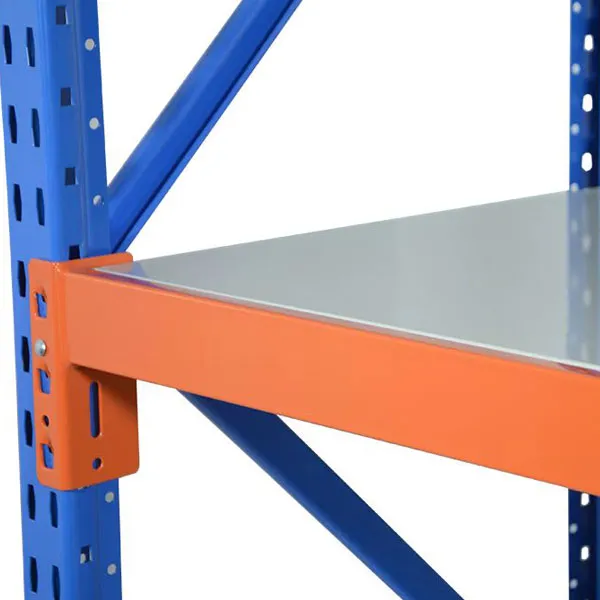

Shelf beam: use “P” type pipe, commonly known as “step beam”, the height of the step matches the height of the laminate.
Shelf steel laminate: It can be directly formed by bending SGCC hot-dip galvanized steel sheet, or it can be made by bending cold-rolled steel sheet on all sides and welding reinforcing ribs at the bottom.
Load capacity: 250kg-800kg/layer, the beam can be freely adjusted up and down according to 50mm, 75MM steps.
Surface treatment: It is sprayed with high-quality epoxy resin electrostatic powder, which has the characteristics of strong adhesion, wear resistance, corrosion resistance, and beautiful appearance. Fully guarantee the surface quality and finish.
Uses: Widely used in electronics, light industry, culture and education, pharmaceutical industries, etc. Manual storage and retrieval of goods, zero storage and zero retrieval, easy access.
Warehouse longspan racking does not have the ultimate use of upward space like mezzanine racks, and its height is mostly below 2.5m, but its layer spacing can be adjusted according to needs

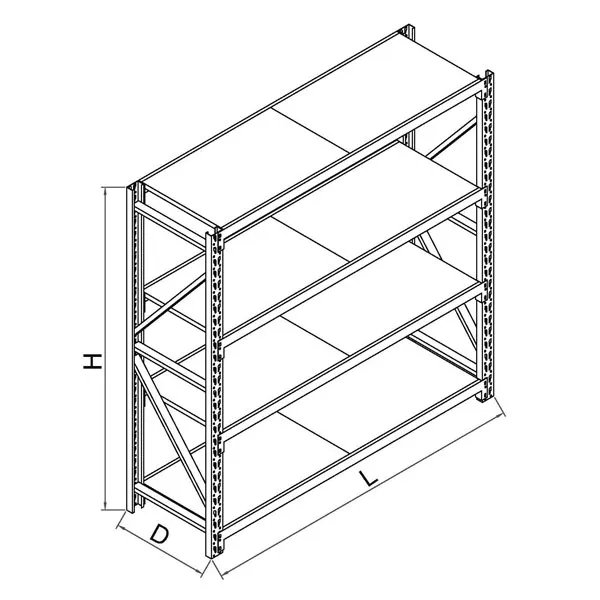

| Main/Add-on(WxD)mm | Height\mm | UDL kg | Layers |
| 1500×500 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |
| 1500×600 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |
| 1500×700 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |
| 1500×800 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |
| 1800×500 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |
| 1800×600 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |
| 1800×700 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |
| 1800×800 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |
| 2000×500 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |
| 2000×600 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |
| 2000×700 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |
| 2000×800 | 1800、2000、2200、2500、2700、3000 | 250~500 | 3~10 |

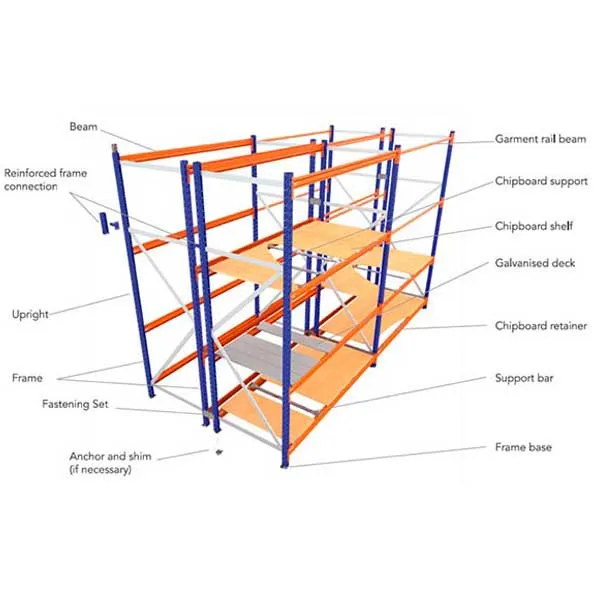

The longspan shelving rack adopts a fully assembled structure, which is composed of the main frame, sub-frame, laminate, column, beam and other accessories, and the assembly and disassembly are simple and easy to understand, convenient and time-saving, and do not need to use any tools.
As a reliable warehouse storage racks manufacturers, we will provide your prospective customers with more complete services with a relatively standard product structure and the support of quite professional business personnel. Under this word of mouth and the push of the Internet, the company will expand to a farther market. While forming a brand and expanding its influence, it also lays a solid foundation for the company's subsequent upgrades.
The main rack refers to a set of shelves that are completely independent of two pieces of uprights and beams (or laminates). A add-on racks refers to a shelf that is attached to an adjacent group of shelves and cannot be independent. If several groups of shelves are assembled into a column, then in addition to the first group requiring two pieces of uprights, other groups can share a piece of uprights with the group in front of it. Such shelves are called add-on racks. This can save space and reduce costs, and the firmness is also more stable than that of a single group, and the storage capacity is also greatly improved.
If the span of the unit rack is less than 2m and the layer load is less than 500kg, it is usually suitable to choose medium duty longspan racking without beam; if the span of the unit rack is more than 2m, generally only the beam-type medium duty column can be selected. , P-beam shelf structure; Beam-type medium duty long span rack are more industrialized and more suitable for storing metal structure products.
